不銹鋼大芯波掣(有鎖)

A-2 WITH ISO MOUNTING PAD, R-2

MODEL NO : A-2 004-030
SIZE : 1/4"-3"

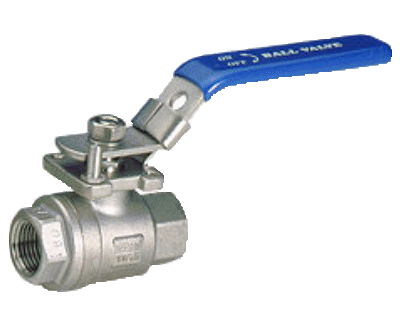

A-2 不銹鋼大芯波掣 (有鎖)
2 - PC BALL VALVES. FULL PORT. 1000 WOG WITH ISO MOUNTING PAD
Thread End : BSPT, NPT, DIN259, DIN2999
Materials : ASTM A351-CF8M (DIN 1.4408) Stainless Steel
ASTM A216-WCB (DIN 1.0619) Carbon Steel
* High quality investment casting body and caps.
* Design for ISO-5211 mounting top flange for actuator.
* Pressure temperature rating :
* 1/4" - 3" 1000 PSI (PN63) / 450deg. F
* 15% reinforced glass fibrous Teflon seats
* Blow-out proof stem S/S 316, adjustable stem packing.
* 100% tested air-under water at at 100 PSI (6 Bars) open & close position.
OPTIONS : * Padlocking Handle, Anti-Static Device.
DIMENSIONS (MM)
SIZE ISO 5211 D 0.5 L 1.0 H 3.0 E 3.0 WT/KG
1/4" F03 11.6 52 48 103 0.29
3/8" F03 13 52 48 103 0.29
1/2" F03 15 64 61 124 0.42
3/4" F03 20 75 61 130 0.58
1" F04 25 88 71 135 0.75
1 1/4" F04 32 102 75 135 1.45
1 1/2" F05 38 110 91 190 2.15
2" F05 50 124 100 190 3.65
2 1/2" F07 65 165 142 260 7.00
3" F07 80 177 142 260 10.5

MATERIAL LIST
NO. PARTS NAME MATERIAL Q'TY
1 BODY A-351 CF8M / WCB 1
2 END CAP A-351 CF8M / WCB 1
3 BALL AISI 316 1
4 SEAT PTFE (RTFE) 2
5 STEM AISI 316 1
6 JOINT GASKET PTFE 1
7 THRUST WASHER PTFE 1
8 STEM PACKING PTFE 1
9 GLAND NUT AISI 304 1
10 HANDLE AISI 304 1
11 WASHER AISI 304 1
12 STEM NUT AISI 304 1
13 PLASTIC COVER PVC 1





R-2 不銹鋼大芯波掣
2 - PC SCREWED BODY STAINLESS
STEEL BALL VALVES
STANDARD PORT . 1500-2000 WOG
Thread End : BSPT, NPT, DIN259, DIN2999
Materials : ASTM A351-CF8M (DIN 1.4408) Stainless Steel
ASTM A351-CF8(DIN 1.4308) Stainless Steel
ASTM A216-WCB(DIN 1.0619) Carbon Steel
* High quality investment Casting body and caps.
* Designed for ISO-5211 Mounting top flange for actuator.
* Pressure temperature Rating :
1/4" - 1" 2000 PSI (PN 130) / 450 deg. F
1-1/4" -2" 1500 PSI (PN 100) / 450 deg. F
* 15% reinforced glass fibrous Teflon seats
* Blow-out proof stem S/S 316, adjustable stem packing.
* 100% tested air-under water at 100 PSI (6 Bars) open & close position
OPTIONS : * Padlocking device, Anti-Static Device.




MODEL NO : R-2 002-020
SIZE : 1/4"-2"
Standard Bore
