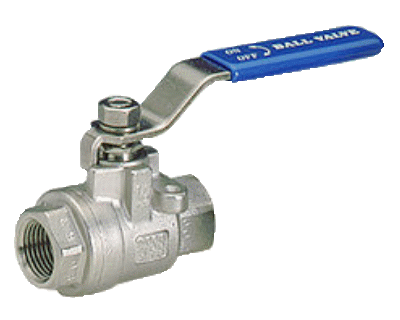

MODEL NO : M-2 002-040
SIZE : 1/4"-3"
FULL BORE |
 |
 |
|
|
M-2
不銹鋼大芯波掣
|
|
2
- PC SCREWED BODY STAINLESS STEEL BALL VALVES. FULL PORT.
1000 WOG |
| Thread
End : |
BSPT,
NPT, DIN 259, DIN2999 |
| Materials
: |
ASTM
A351-CF8M (DIN 1.4408) Stainless Steel
ASTM A216-WCB (DIN 1.0619) Carbon Steel |
* High quality investment
casting body and caps.
* Pressure temperature rating : 1000 PSI ( PN63) / 450
deg. F
* Virgin (Pure ) Teflon seats
* Blow-out proof stem S/S 316, adjustable stem packing.
* 100% test air-under water at 100 PSI (6 Bars) open
& close position. |
|
| OPTIONS
: |
|
Oval
handle, Butterfly handle, Investment cast handle. |
DIMENSIONS (MM)
| SIZE |
A |
L |
L1 |
H |
E |
W1 |
W2 |
H |
WT/KG |
| 1/4" |
11.6 |
55 |
27.5 |
50 |
96 |
12.7 |
28.5 |
10-24 UNC |
0.29 |
| 3/8" |
12.7 |
55 |
27.5 |
50 |
96 |
12.7 |
28.5 |
10-24 UNC |
0.28 |
| 1/2" |
15 |
65 |
32.5 |
53 |
96 |
12.7 |
28.5 |
10-24 UNC |
0.42 |
| 3/4" |
20 |
77 |
38.5 |
64 |
125 |
22.4 |
35 |
10-24 UNC |
0.58 |
| 1" |
25 |
88 |
44 |
66 |
125 |
22.4 |
35 |
1/4-20 UNC |
0.75 |
| 1 1/4" |
32 |
102 |
51 |
79 |
170 |
25.4 |
38.1 |
1/4-20 UNC |
1.45 |
| 1 1/2" |
38 |
110 |
55 |
83 |
170 |
25.4 |
38.1 |
1/4-20 UNC |
2.15 |
| 2" |
50 |
126 |
63 |
94 |
170 |
25.4 |
38.1 |
1/4-20 UNC |
3.65 |
| 2 1/2" |
65 |
164 |
82 |
136 |
250 |
30.0 |
70.0 |
1/4-20 UNC |
7.00 |
| 3" |
70 |
181 |
90.5 |
149 |
250 |
30.0 |
70.0 |
1/4-20 UNC |
10.5 |
MATERIAL LIST
| Nr. |
Description |
C/S |
304 |
316 |
| 1 |
Body |
S-45c |
A351 CF8 |
A351 CF8M |
| 2 |
BodyCap |
S-45c |
A351 CF8 |
A351 CF8M |
| 3 |
Ball |
AISI 304 |
AISI 304 |
AISI 316 |
| 4 |
Seat |
PTFE (RTFE) |
| 5 |
Stem |
AISI 304 |
AISI 304 |
AISI 316 |
| 6 |
Body Seal |
PTFE |
PTFE |
PTFE |
| 7 |
Thrust Washer |
PTFE |
PTFE |
PTFE |
| 8 |
Packing |
PTFE |
PTFE |
PTFE |
| 9 |
Gland Nut |
AISI 304 |
AISI 304 |
AISI 304 |
| 10/11 |
Nut & Wash. |
Steel Nickel |
AISI 304 |
AISI 304 |
| 12 |
Handle |
Steel Nickel |
AISI 304 |
AISI 304 |
| 13 |
Plastic cover |
Plastic |
Plastic |
Plastic |
| 14 |
Locking device |
Steel Nickel |
AISI 304 |
AISI 304 |
|
|
V-2
不銹鋼大芯波掣
|
| 2 - PC SCREWED
BODY STAINLESS STEEL BALL VALVES. FULL PORT.
1000 WOG |
| Thread
End : |
BSPT,
NPT, DIN259, DIN2999 |
| Materials
: |
ASTM
A351-CF8M (DIN 1.4408) Stainless Steel
ASTM A216-WCB (DIN 1.0619) Carbon Steel |
*
High quality investment casting body and caps.
* Pressure temperature rating : 1000 PSI (PN63) / 450deg.
F
* Virgin (Pure) Teflon seats
* Blow-out proof stem S/S 316, adjustable stem packing
|
| * |
100% tested air-under
water at 100 PSI (6 Bars) open & close position. |
|
| OPTIONS
: |
Oval handle, Butterfly
handle, Investment cast handle. |
|
MODEL NO : V-2 002-030
SIZE : 1/4"-3" FULL BORE |
|
