MODEL NO : V-1 002-020
SIZE : 1/4"-2"
REDUCE BORE |
|
V-1不銹鋼細芯波掣 |
|
1-

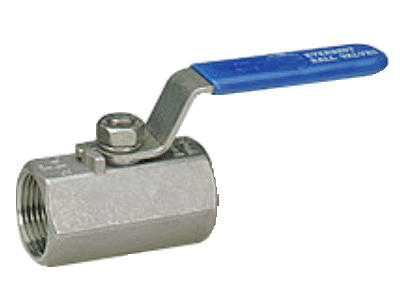

PC HEXAGON TYPE STAINLESS STEEL
BALL VALVES, REDUCED PORT 1000 WOG |
| Thread
End : |
BSPT,
NPT, DIN259, DIN2999 |
| Materials
: |
ASTM
A351-CF8M (DIN 1.4408) Stainless Steel
ASTM A351-CF8(DIN 1.4308) Stainless Steel |
* For chemical and industrial
applications.
* High quality investment casting body.
* Pressure temperature rating : 1000 PSI (PN63) /450
deg. F
* 15% reinforced Glassfibre Teflon seats
* Blow-out proof stem S/S 316
* 100% tested air-under water at 100 PSI (6 Bars) open
& close position. |
|
|
OPTIONS
:
* Padlocking device,
oval handle, 15% glassfibre R-PTFE Seats. |
|
|
A-1
不銹鋼細芯波掣 |
| 1-PC
ROUND TYPE STAINLESS STEEL BALL VALVES . REDUCED PORT . 800
WOG |
| Thread
End : |
BSPT,
NPT, DIN259, DIN2999 |
| Materials
: |
ASTM
A351-CF8M (DIN 1.4408) Stainless Steel
ASTM A351-CF8(DIN 1.4308) Stainless Steel |
|
* |
For
chemical and industrial applications. |
| * |
High quality
investment casting body. |
| * |
Pressure temperature
rating : 800 PSI (PN53) /450 deg. F |
| * |
15% reinforced
Glassfibre Teflon seats |
| * |
Blow-out proof
stem S/S 316 |
| * |
100% tested
air-under water at 100 PSI (6 Bars) open & close position. |
|
| OPTIONS
: |
|
| * |
Padlocking device, oval
handle, 15% glassfibre R-PTFE Seats.Butterfly Handle |
|
|
MODEL NO : A-1 002-020
SIZE : 1/4"-2"
REDUCE BORE |
MODEL NO : M-1 002-020
SIZE : 1/4"-2"
REDUCE BORE
|
|
M-1
不銹鋼細芯波掣 |
|
1
- PC HEXAGON TYPE STAINLESS STEEL BALL VALVES. REDUCED PORT 1000 WOG |
|
Thread
End : |
BSPT,
NPT, DIN259, DIN2999 |
| Materials
: |
ASTM
A351-CF8M(DIN 1.4408) Stainless Steel
ASTM A351-CF8 (DIN 1.4308) Stainless Steel
ASTM A216-WCB (DIN 1.0619) Carbon Steel |
* High quality investment
Casting Body.
* Pressure temperature rating : 1000 PSI (PN 63) / 450
deg. F
* 15% reinforced Glassfibre Teflon seats
* Blow-out proof stem S/S 316
* 100% tested air-under water at 100PSI (6 Bars) open
& close position. |
|
| OPTIONS : |
* Padlocking Device
* Pressure
* On Request |
|
|
